MDF
Folding multi-rotor propellers
The folding multi-rotor propellers of the Lighter lineup: folding version — compact structure for easy storage and transport. One-piece carbon fiber construction delivers a balanced, efficient blade for multirotor. Diameters 18 – 42 inch.
MDF details
MDF series — specificationSheet P-03
01FamilyMultirotor — MDFFolding multi-rotor propellers

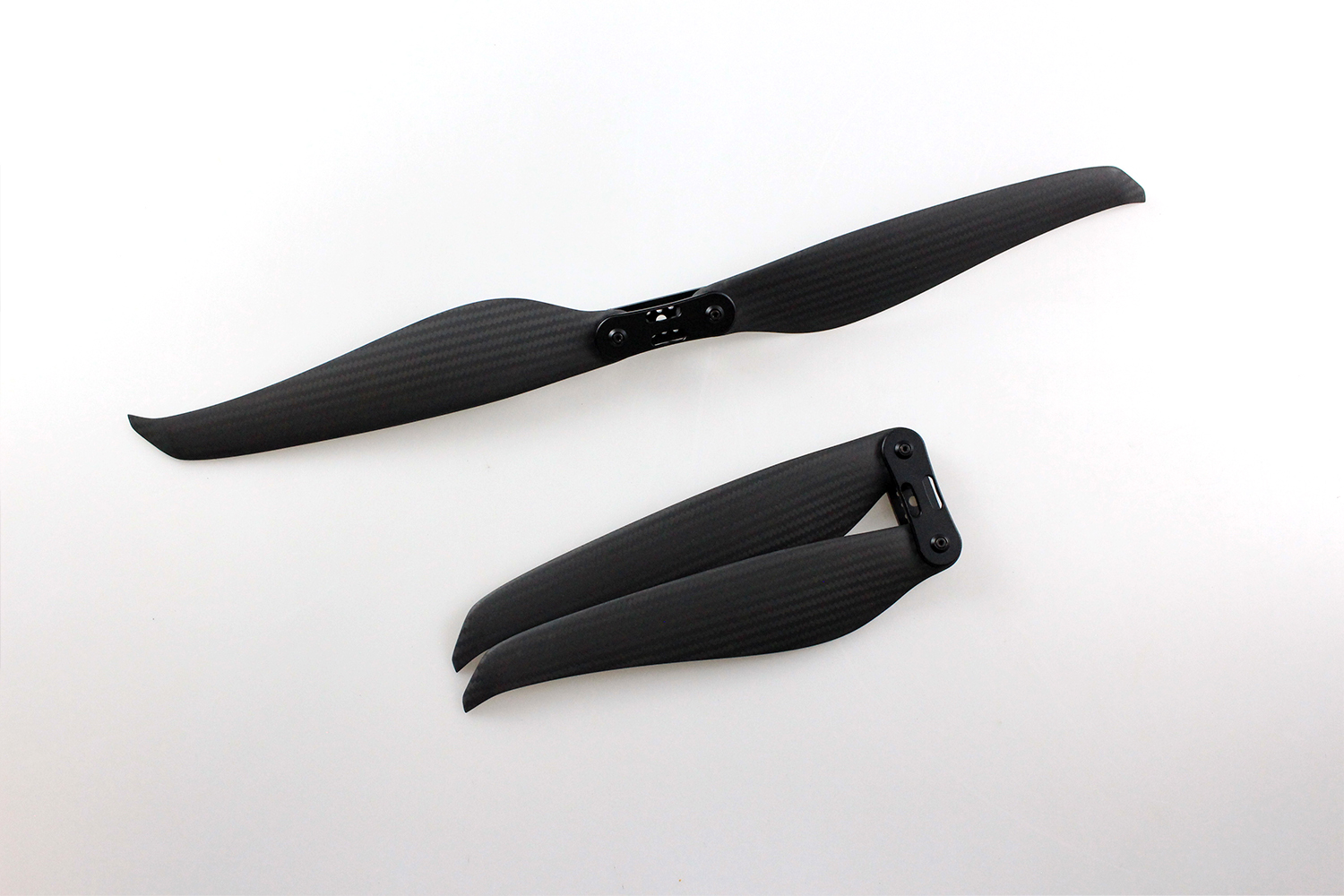

02Blade configurationFoldingCompact folding structure for transport
03PlatformMultirotorEndurance and logistics
04MaterialCarbon fiberOne-piece molded
05Diameter18 – 42 inchStock range; other sizes to order
06PitchTo order (inch)Matched to motor / engine
07Hub drillingTo your motor (mm)Any bolt pattern
08Surface finishStandard glossCustom treatment available
09BrandingOptionalYour logo printed on the blade
Dimensions are built to order — full charts for stock sizes are in the catalogue. Test data available on request.
MDF chart
| Diameter(inch) | Pitch(inch) | Rotation Direction |
|---|---|---|
| 18.2 | 6.1. | CW/CCW |
| 20.2 | 6 | CW/CCW |
| 22.2 | 6.6 / 7.2 | CW/CCW |
| 24.2 | 7.2 | CW/CCW |
| 26.2 | 8.5 | CW/CCW |
| 27.2 | 8.8 | CW/CCW |
| 28.2 | 8.4 / 9.2 | CW/CCW |
| 29.2 | 9.5 | CW/CCW |
| 30.2 | 10.5 | CW/CCW |
| 31.2 | 10 | CW/CCW |
| 32.2 | 11 | CW/CCW |
| 34.2 | 11.5 | CW/CCW |
| 36.2 | 11.5 | CW/CCW |
| 38.2 | 12.4 | CW/CCW |
| 40.2 | 13.1 | CW/CCW |
| 42.2 | 13.8 | CW/CCW |
Every MDF can be customized.
Size, pitch, material, blade type, surface treatment, drilling pattern, your logo — or a full one-off design developed with you.
